ALL TORQUE manufactures stainless steel flanged ball valves and threaded
ball valves on its own so we are able to complete the supply of various
ball valves and installation and test of automatic control ball valves,
and also help our customers with the installation of actuators and

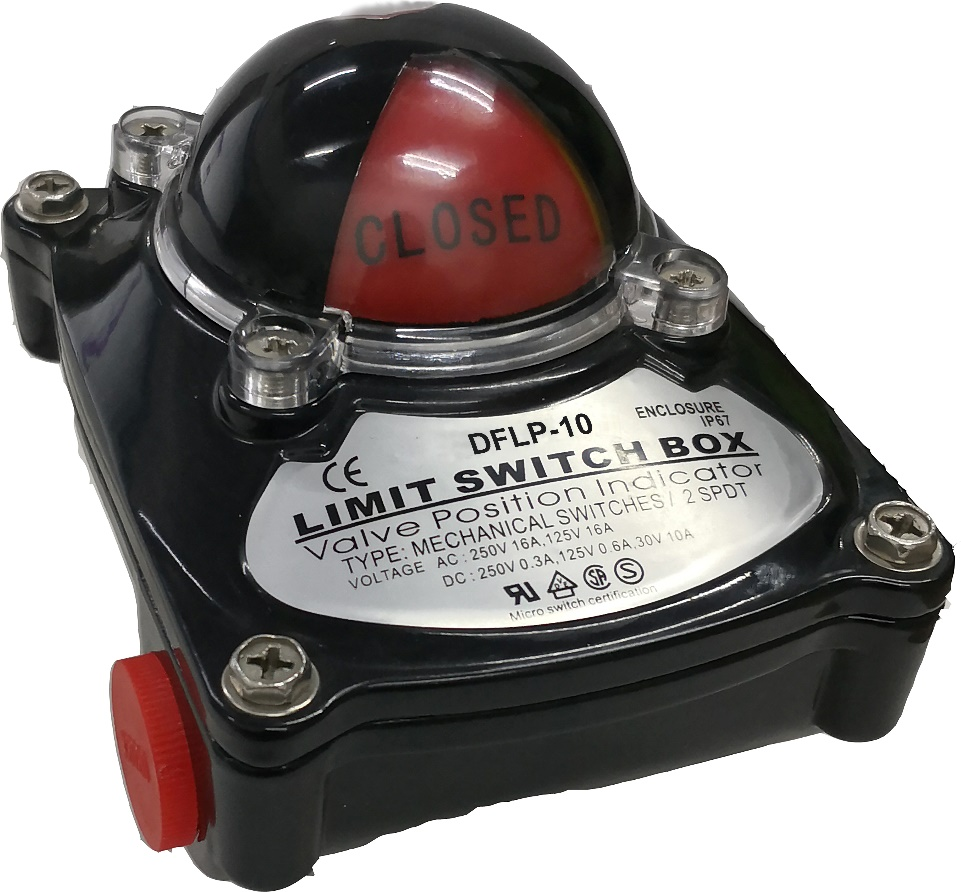

other relevant accessories (e.g. limit switches, positioners, filter
regulators, solenoid valves and declutchable manual overrides) on ball
valves.

Ball float valve
external thread(87020-A)
Size: 1/2"~2"
Thread standard: NPT.BSPT.BSP. DIN2999.ISO228/1
Wroking pressure: PN10（145psi）
Working temp.: -50℃~230℃

Angle seat piston valve
SS316 cap internal thread(88013-A)
Plastic cap internal thread(88013-B)
Size: 1/2"~2"
Thread standard: NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure: PN16(200psi for W.O.G.)
Working temp.: -50℃~230℃

Check valve
T-type internal thread(85010-A)
T-type socket weld(85030-A)
Y-type internal thread(85710-A)

Size: 1/4”~3”
Thread standard: NPT.BSPT.BSP. DIN2999.ISO228/1
Working pressure: PN16 (200psi for W.O.G.)
Working temp.: -50℃~230℃

Globe valve
Internal thread(84011-A)
Socket weld(84031-A)
Size: 1/4”~2”
Thread standard: NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure: PN16 (200psi)
Working temp.: -50℃~230℃

Gate Valves
Connection end:
Internal thread（83011-A）
External thread（83021-A）
Socket weld(83031-A)
Size: 1/2”~3” (83011-A,83031-A),A15-A60 (83021-A)
Thread standard: NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure: PN16 (200psi)
Working temperture: -50℃~230℃

Flange ball valve （49 series）

3-PC ball valve(82312-A/82332-A and 82312-B / 82332-B)

Connection End: threaded,socket weld
Size:1/4"~4"
Thread standard:NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure:70kgf/cm2 (1000psi for W.O.G.)
Working temp.:-50℃~230℃

2-piece ball valve

Size:1/4"~2"
Thread standard:NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure:70kgf/cm2 (1000psi for W.O.G.)
Working temp.:-50℃~230℃

ALL TORQUE supplies common 5/2way and 3/2way solenoid valves
and ASCO or NORGREN explosion-proof solenoid valves for your
selection.Pilot or direct acting,low power consumption, low
temp. as low as -40℃,SS316 material, flame-proof,ATEX,NEMA,SIL3 certified.

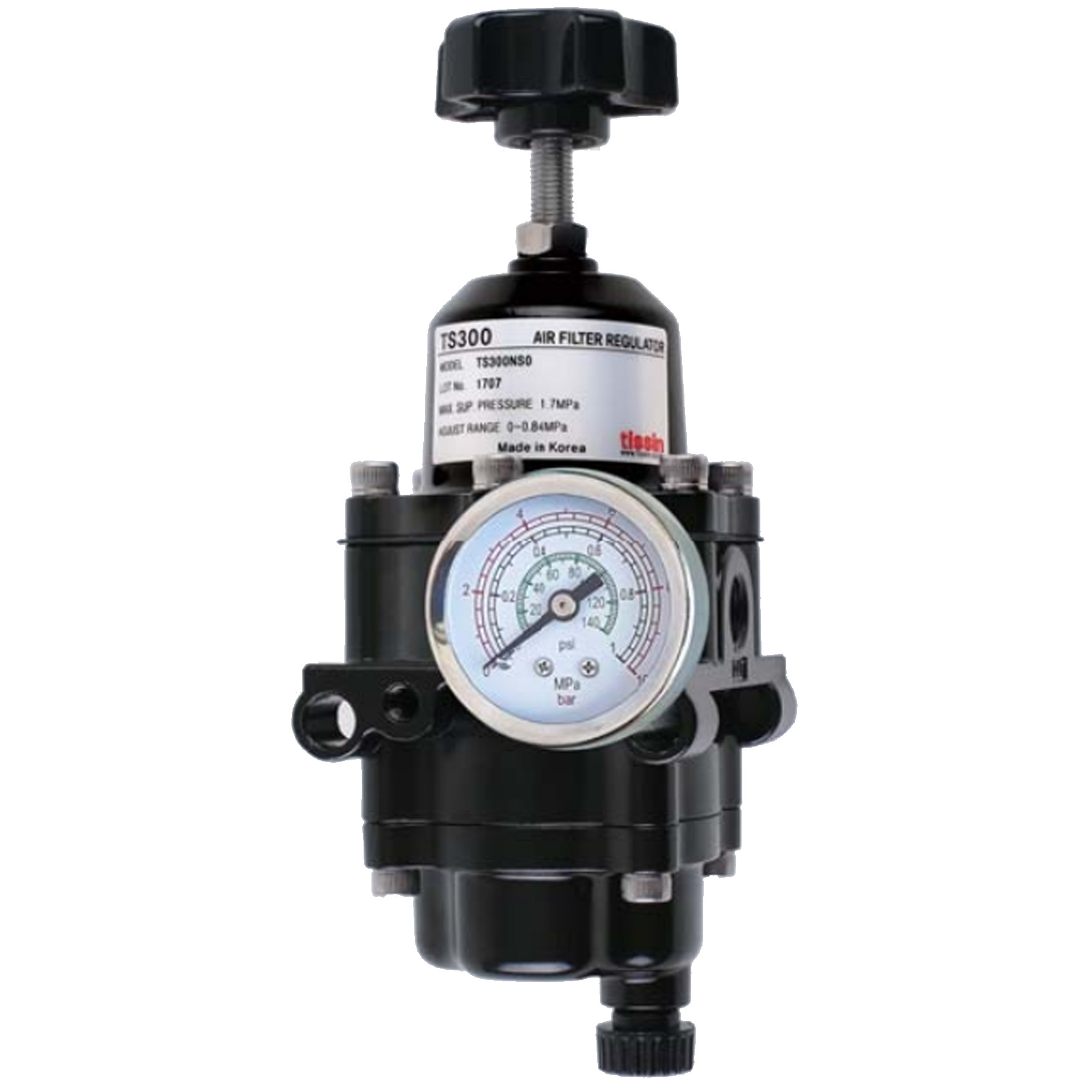

ALL TORQUE supplies quality air filter regualtor with famous brand, such as SMC or NORGREN etc.Other brand which customer confirmed
is available as well.AW20 series AFR was widely applied with pneumatic
actuator,5μm Filter Precision and stable performance which is your best
choice.

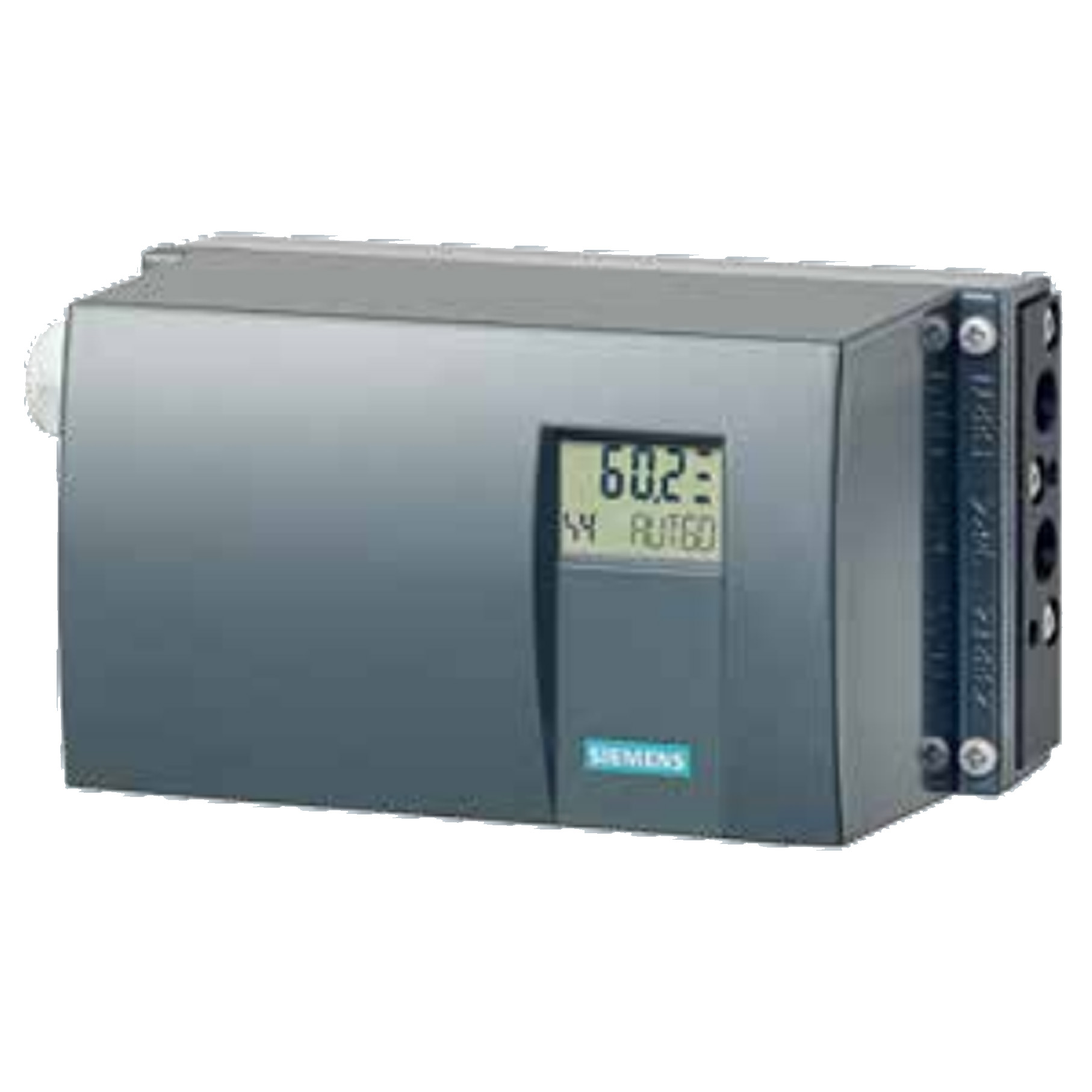

ALL TORQUE is able to supply electro-pneumatic positioner with famous brand, such as SMC,FISHER,SIEMENS,YTC or customer
confirmed brand, in a fast deliver.SMC IP8100 series positioner was widely applied with pneumatic actuator for control valves.

1-PC ball valve with internal thread & external thread
Size： 1/4”～2”
Thread standard：NPT.BSPT.BSP.DIN2999.ISO228/1
Working pressure：63kgf/cm2 (800psi for W.O.G.)
Applicable temp.：-50℃~230℃

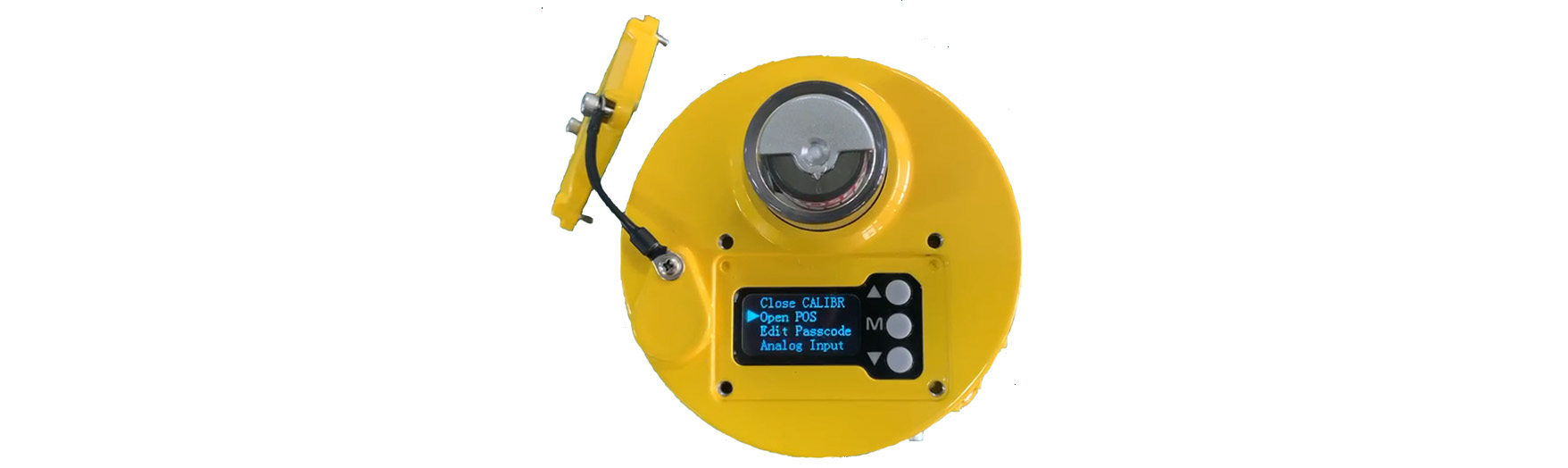

In order to meet customers demand, ALL TORQUE supplies ITS-100,300,500 series valve positioner monitor.

ALL TORQUE supplies two types of brackets for  customers,mounting valve and actuator: stainless steel casting  type and stamping type. They have compact structure and nice  appearance.

ALL TORQUE designs and produces a series of connection flange and adapter kits to install actuator with valve conveniently,or use ISO bracket or ISO gearbox as a connection transition.

ALL TORQUE supplies a series of adaptors for the connection of actuator and valve. The standard version applies to DFS series two piston actuators, and customized non-standard versions are also available upon customer requests. Materials for the products can be carbon steel, stainless steel, etc.
